Product Overview

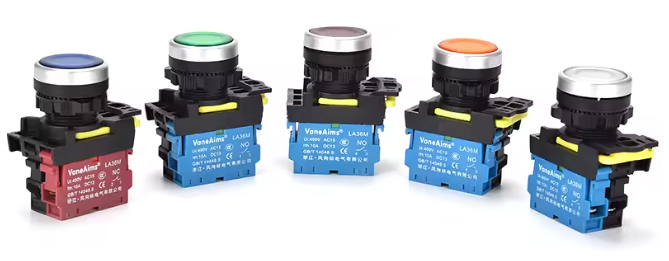

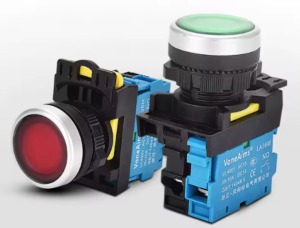

The LA36M industrial push button switch with LED indicator is designed for reliable control and signaling in electrical and automation systems. It is suitable for control panels, machinery, and industrial applications where clear visual indication and dependable manual operation are required. The push button features a standard 22mm panel mounting size and high quality silver contacts, thereby ensuring stable electrical performance and long service life.
Key Features
• 22mm industrial push button switch with LED indicator
• Available in momentary and self locking operation modes
• Built in LED light for clear status indication
• Multiple voltage options for AC and DC control circuits
• Silver contact material for reliable conductivity
• Normally Open and Normally Closed contact support
• Easy panel installation and secure fixation
• Suitable for industrial and automation environments
Technical Specifications
• Product name: Push button switch with LED light
• Product model: LA36M
• Mounting diameter: 22mm
• Contact configuration: 1NO and 1NC
• Rated current: 10A
• Contact material: Silver contact
• Operation modes: Momentary self reset and Fixed self locking
• Voltage options: 12V DC, 24V DC, 24V AC, 110V AC, and 220V AC
• LED colors: Red, Yellow, Blue, Green, and White
Contact Configuration
The push button supports modular contact blocks. Normally Open and Normally Closed contact modules can be added or replaced easily. The button can hold up to four contact modules, allowing flexible configuration based on control requirements.
• Normally Open contact
The contact is normally in the open state. When the button is pressed, the contact closes.
• Normally Closed contact
The contact is normally in the close state. When the button is pressed, the contact opens.
Difference in Operation Modes
• Momentary push button
When the button is pressed, the contact is energized. When you remove your hand from the button, it will self reset and the contact will no longer remain energized.
• Self locking push button
When the button is pressed, it enters a locked position and the contact will remain energized. Pressing the button again will release the lock and de energize the contact.
Typical Applications
• Control panels and switchboards
• PLC input control circuits
• Motor start and stop stations
• Industrial automation systems
• Signaling and indication circuits
Package Includes
• One LA36M push button switch with LED light
• Installed contact block
