Product Overview

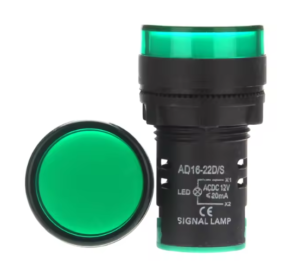

The AD16-22DS 22 mm LED indicator light is designed for clear visual signaling in electrical and automation systems. It is commonly used in control panels and switchboards to indicate power status, machine operation, or fault conditions. The compact panel mount design ensures easy installation and reliable performance in industrial environments.
Key Features
• 22 mm panel mount LED indicator lamp
• Clear visual indication for power and status signaling
• Available in multiple voltage options
• Low current consumption for energy efficiency
• Durable construction for long service life
• Suitable for AC and DC control circuits
• Easy installation in control panels and enclosures
Technical Specifications
• Product type: LED indicator pilot light
• Product model: AD16-22DS
• Mounting diameter: 22 mm
• Rated voltage options: 12V DC, 24V DC, 24V AC, 110V AC, & 220V AC
• Rated current: 20 mA
• Light source: LED

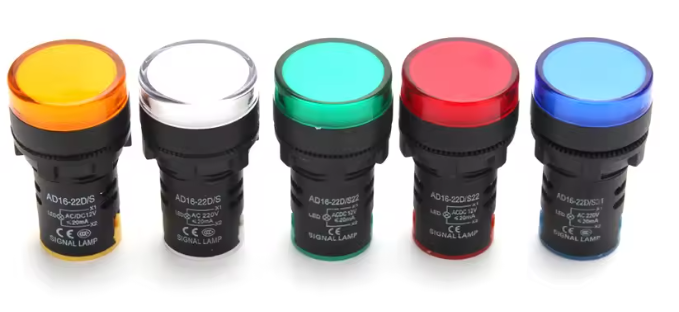

• Indicator colors: Red, Yellow, Blue, Green, and White
• Mounting type: Panel mount
Typical Applications
• Electrical control panels
• Power indication and signaling
• Automation systems
• PLC control cabinets
• Machine status indication
• Industrial switchboards
Package Includes
• One 22 mm LED indicator light
Installation Notes
Install the indicator light through a standard 22 mm panel cut out. Ensure the selected voltage matches the control supply. Proper wiring will ensure the indicator remains energized only under intended operating conditions.
